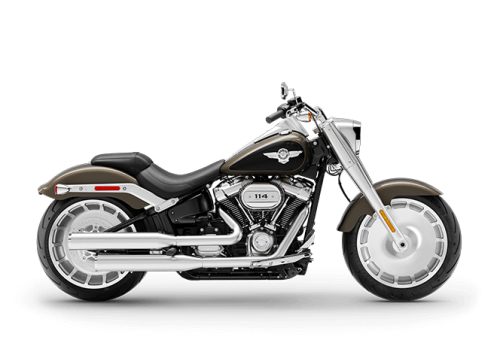

The name may be Fat Boy®, but the look is all muscle. This is the icon, riding on a 240mm rear tyre, 160mm front tyre and solid disc wheels. You get satin chrome finishes and signature LED lighting. This version is 14 kilograms lighter than the previous generation Fat Boy models, and its slinging torque from a Milwaukee-Eight® 107 or 114 engine. You’ll notice the difference the instant you crack the throttle. Sometimes a bike comes along that changes the landscape. The Fat Boy is one of them.

Available in 107 (1745cc) and 114 (1868cc) engine displacements.

Specifications

  • Dimensions
    add remove
    • Length:
      93.3 in
    • Ground clearance:
      4.5 in
    • Trail:
      4.1 in
    • Wheelbase:
      1,665 mm
    • Tires, front specifications:
      160/60R18,70V,BW
    • Tires, rear specifications:
      240/40R18,79V,BW
    • Fuel Capacity:
      5.0 gal
    • Oil capacity:
      5 qt.
    • Weight, as shipped:
      670 lbs
    • Weight, in running order:
      699 lb
  • Engine
    add remove
    • Engine:
      Milwaukee-Eight® 114
    • Bore:
      4.0 in
    • Stroke:
      4.5 in
    • Displacement:
      113.99 in3
    • Compression ratio:
      10.5:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-into-2 staggered; catalyst in muffler
  • Performance
    add remove
    • Engine torque testing method:
      J1349
    • Engine torque:
      118.7 ft-lb
    • Lean angle, right (deg.):
      25.6
    • Lean angle, left (deg.):
      25.6
    • Fuel economy testing method:
      Estimated City/Hwy
    • Fuel economy:
      0.02 mpg
  • Powertrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      9.311
    • Gear ratios (overall) 2nd:
      6.454
    • Gear ratios (overall) 3rd:
      4.793
    • Gear ratios (overall) 4th:
      3.882
    • Gear ratios (overall) 5th:
      3.307
    • Gear Ratios (overall) 6th:
      2.79
  • Chassis
    add remove
    • Wheels, front type:
      Machined, Lakester cast aluminum
    • Wheels, rear type:
      Machined, Lakester cast aluminum
    • Brakes, caliper type:
      4-piston fixed front and 2-piston floating rear
  • Electric
    add remove
    • Lights (as per country regulation), indicator:
      High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
    • Gauges:
      5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
