2025

Fat Boy^®

Click to Request Details

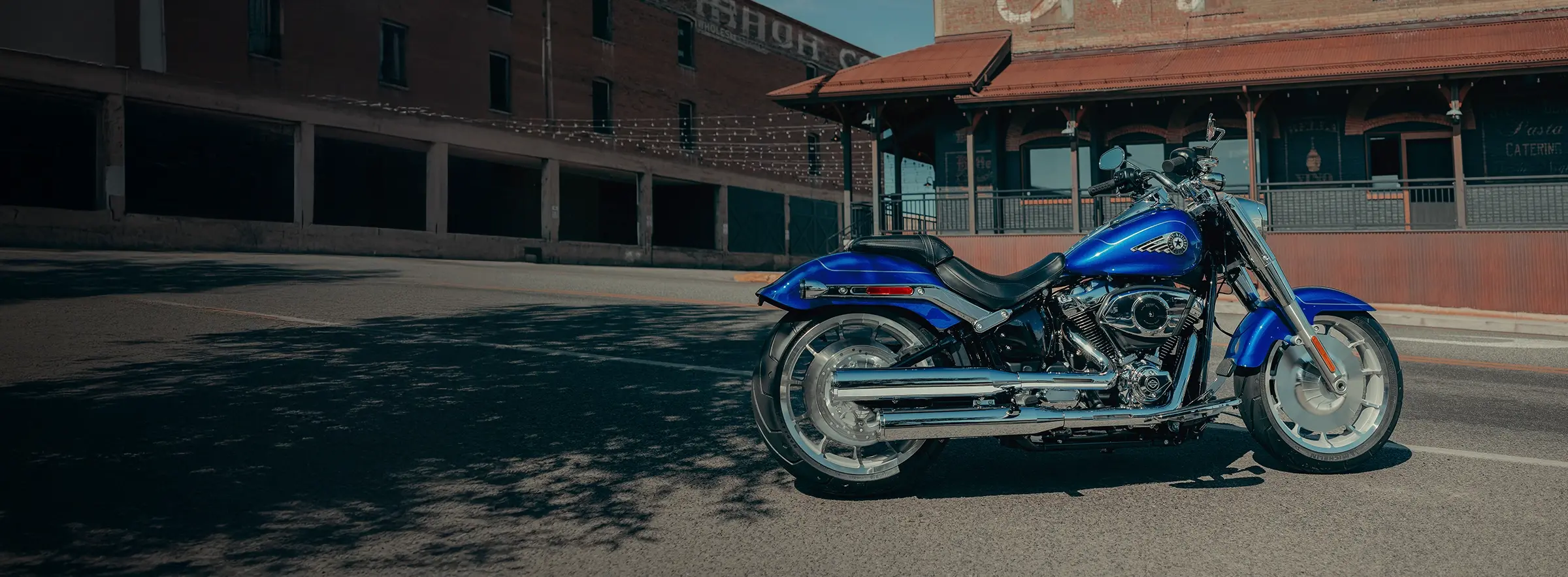

2025 Fat Boy^®

Adored since day one, the singular Fat Boy stands out with bright chrome and bold finishes, and now it is better than ever with a big Milwaukee-Eight^® 117 Custom V-twin engine.

Billiard Gray
Vivid Black
Blue Burst
Whiskey Fire / Vivid Black
360

Disclaimer: Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

Key features

Milwaukee-Eight® 117 Custom Engine

Milwaukee-Eight® 117 Custom V-twin engine delivers sound, feel, and all the power you need for effortless long-mile highway cruising or exhilarating in-town performance.

Specifications

Pricing

add remove
- Base MSRP

  $22,599
- Vivid Black

  $350
- Premium Solids

  $650
- Two-Tone

  $850
- California Emissions

  $200
- Freight

  $730
Dimensions

add remove
- Length

  93.1 in
- Seat height, unladen

  26.6 in
- Ground clearance

  4.9 in
- Trail

  4.1 in
- Wheelbase

  65 in
- Tires, front specifications

  160/60R18,70V,BW
- Tires, rear specifications

  240/40R18,79V,BW
- Fuel Capacity

  5 gal
- Oil capacity

  5 qt.
- Weight, as shipped

  668 lbs
- Weight, in running order

  694 lb
- Tire, type

  Michelin® Scorcher 11 front and rear
Engine

add remove
- Engine

  Milwaukee-Eight® 117 Custom
- Bore

  4.1 in
- Stroke

  4.5 in
- Displacement

  117.35 in³
- Compression ratio

  10.3:1
- Fuel system

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust

  2-into-2 staggered; catalyst in muffler
Performance

add remove
- Engine torque testing method

  J1349
- Engine torque

  126.1 ft-lb
- Engine torque (RPM)

  3000
- Horsepower

  104 HP / 77 kW @ 4800 rpm
- Lean angle, right (deg.)

  25.6
- Lean angle, left (deg.)

  25.6
- Fuel economy testing method

  Estimated City/Hwy
- Fuel economy

  47 mpg (5 l/100 km)
Powertrain

add remove
- Primary drive

  Chain, 34/46 ratio
- Gear ratios (overall) 1st

  9.311
- Gear ratios (overall) 2nd

  6.454
- Gear ratios (overall) 3rd

  4.793
- Gear ratios (overall) 4th

  3.882
- Gear ratios (overall) 5th

  3.307
- Gear Ratios (overall) 6th

  2.79
Chassis

add remove
- Front fork

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers
- Rear shocks

  Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
- Wheels, front type

  Machined, Lakester cast aluminum
- Wheels, rear type

  Machined, Lakester cast aluminum
- Brakes, type

  Front and rear silver, Split 7-spoke floating rotors
- Brakes, caliper type

  4-piston fixed front and 2-piston floating rear
Color options

add remove
- Billiard Gray
- Vivid Black
- Blue Burst
- Whiskey Fire / Vivid Black
