2025

Low Rider^® S

Click to Request Details

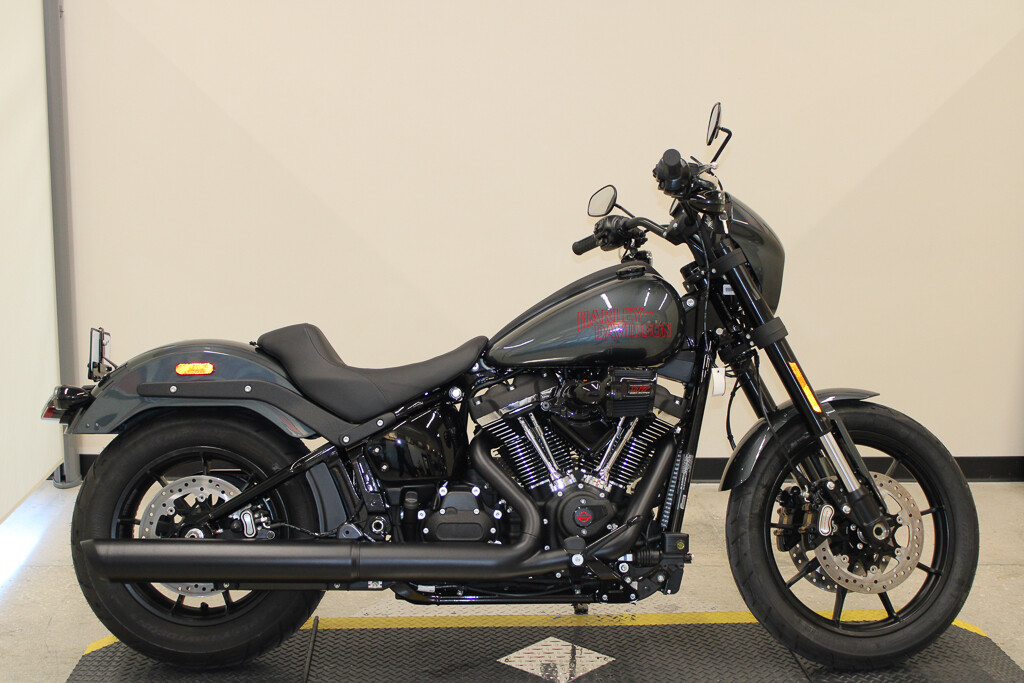

2025 Low Rider^® S

With bold styling, an aggressive stance, and unrelenting power from the Milwaukee-Eight^® 117 High Output engine, the Low Rider S is a custom-style cruiser that is ready to rip from the factory.

Billiard Gray
Vivid Black
Brilliant Red
Iron Horse Metallic
Mystic Shift
360

Disclaimer: Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

Key features

Milwaukee-Eight® 117 H.O. Engine

High-output Milwaukee-Eight® 117 engine is tuned to deliver peak power in the upper rev range and entice riders who want to push their bike to the limit.

Specifications

Pricing

add remove
- Base MSRP

  $20,499
- Vivid Black

  $350
- Premium Solids

  $650
- Custom Color

  $1,200
- California Emissions

  $200
- Freight

  $730
Dimensions

add remove
- Length

  92.9 in
- Seat height, unladen

  28.1 in
- Rake (steering head)

  28
- Trail

  5.7 in
- Wheelbase

  63.6 in
- Tires, front specifications

  110/90B19,62H,BW
- Tires, rear specifications

  180/70B16,77H,BW
- Fuel Capacity

  5 gal
- Oil capacity

  5 qt.
- Weight, as shipped

  644 lbs
- Weight, in running order

  670 lb
- Tire, type

  Michelin® Scorcher 31, front and rear
Engine

add remove
- Engine

  Milwaukee-Eight® 117 High-Output
- Bore

  4.1 in
- Stroke

  4.5 in
- Displacement

  117.35 in³
- Compression ratio

  10.3:1
- Fuel system

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust

  2-into-1; catalyst in header
Performance

add remove
- Engine torque testing method

  J1349
- Engine torque

  128.3 ft-lb
- Engine torque (RPM)

  4000
- Horsepower

  114 HP / 85 kW @ 5000 rpm
- Lean angle, right (deg.)

  31.3
- Lean angle, left (deg.)

  31.3
- Fuel economy testing method

  Estimated City/Hwy
- Fuel economy

  47 mpg (5 l/100km)
Powertrain

add remove
- Primary drive

  Chain, 34/46 ratio
- Gear ratios (overall) 1st

  9.311
- Gear ratios (overall) 2nd

  6.454
- Gear ratios (overall) 3rd

  4.793
- Gear ratios (overall) 4th

  3.882
- Gear ratios (overall) 5th

  3.307
- Gear Ratios (overall) 6th

  2.79
Chassis

add remove
- Front fork

  Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
- Rear shocks

  Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
- Wheels, front type

  Dark bronze, Radiate cast aluminum wheel
- Wheels, rear type

  Dark bronze, Radiate cast aluminum wheel
- Brakes, type

  Front and rear black, Split 7-spoke floating rotors
- Brakes, caliper type

  4-piston fixed front and 2-piston floating rear
Color options

add remove
- Billiard Gray
- Vivid Black
- Brilliant Red
- Iron Horse Metallic
- Mystic Shift
