‹ Home › Collection › Harley-Davidson^® › 2025 H-D^® Motorcycles › Adventure Touring › CVO™ Pan America®

2025

CVO™ Pan America®

Click to Request Details

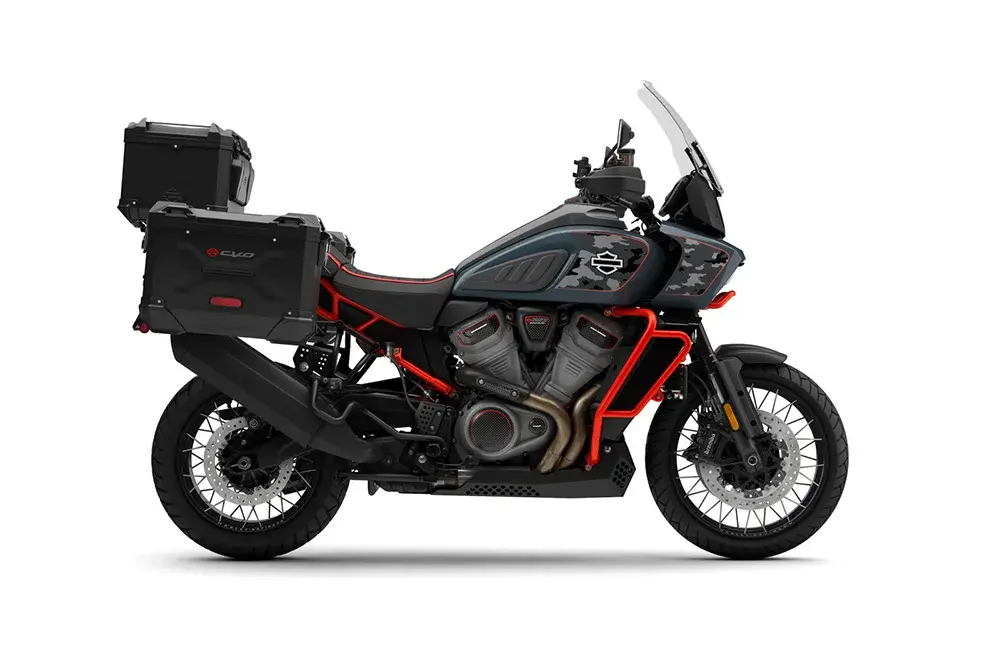

2025 CVO™ Pan America®

The most functional go-anywhere motorcycle in Harley-Davidson’s lineup, with limited-edition paint and all the factory-installed accessories you could ever want, the CVO Pan America is ready to go as far as you want, straight from the showroom floor.

Disclaimer: Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

Key features

Luggage

Designed in collaboration with SW-Motech, black aluminum hardcases provide 120 liters of combined storage, with premium CVO detailing and passenger backrest on the top case.

Specifications

Pricing

add remove
- Custom Color

  $29,249
- California Emissions

  $200
- Freight

  $875
Dimensions

add remove
- Length

  92.3 in
- Rake (steering head)

  25
- Trail

  4.3 in
- Wheelbase

  62.4 in
- Tires, front specifications

  120/70R19 60V
- Tires, rear specifications

  170/60R17 72V
- Fuel Capacity

  5.6 gal
- Oil capacity

  4.75 qt.
- Weight, as shipped

  626 lbs
- Weight, in running order

  659 lb
- Luggage capacity – volume

  4.24 cu ft (0.12 m³)
- Tire, type

  Michelin® Scorcher “Adventure”, Radial
Engine

add remove

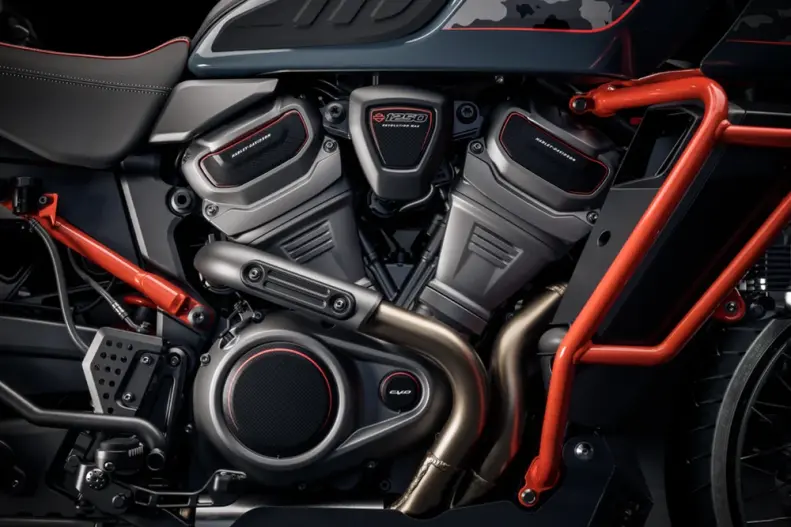

- Engine

  Revolution® Max 1250
- Bore

  4.1 in
- Stroke

  2.8 in
- Displacement

  76.40 in³
- Compression ratio

  13.0:1
- Fuel system

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust

  2-into-1-into-1; catalyst in header
Performance

add remove
- Engine torque testing method

  J1349
- Engine torque

  95.1 ft-lb
- Engine torque (RPM)

  6750
- Lean angle, right (deg.)

  42
- Lean angle, left (deg.)

  42
- Fuel economy testing method

  Estimated City/Hwy
- Fuel economy

  46 mpg (5.1 l/100 km)
Powertrain

add remove
- Primary drive

  Gear, 49/89 ratio
- Gear ratios (overall) 1st

  13.11
- Gear ratios (overall) 2nd

  9.687
- Gear ratios (overall) 3rd

  7.509
- Gear ratios (overall) 4th

  6.057
- Gear ratios (overall) 5th

  5.08
- Gear Ratios (overall) 6th

  4.436
Chassis

add remove
- Front fork

  47mm inverted fork with electronically adjustable semi-active damping control and Adaptive Ride Height (ARH). Aluminum fork triple clamps
- Rear shocks

  Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping and Adaptive Ride Height (ARH)
- Wheels, front type

  Annodized aluminum tubeless laced
- Wheels, rear type

  Annodized aluminum tubeless laced
- Brakes, type

  Front: dual rotor, floating, tower- mounted; Rear: solid uniform expansion rotor
- Brakes, caliper type

  Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
Infotainment

add remove
- Screen size

  6.8 in
- Type

  Color TFT w/ Touch
- Headset specifications (if equipped)

  Bluetooth
- Languages

  Arabic, Chinese, (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese
- Hands-free mobile phone — via Bluetooth

  Standard
- Voice Recognition Languages: Phone functions only

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation

  Phone dependent
- Text-to-Speech (TTS) languages

  Phone dependent
- Rider / passenger intercom

  Headset function only
- Vehicle information screen

  TPMS, Engine temp, Battery Voltage, Ambient Air Temp
- USB

  Charging and Instrument update, USB-C, 5V, 3A
- Bluetooth

  Phone/Media Supported
Color options

add remove
- Carbon Blue
