2025

Pan America^® 1250 ST

Click to Request Details

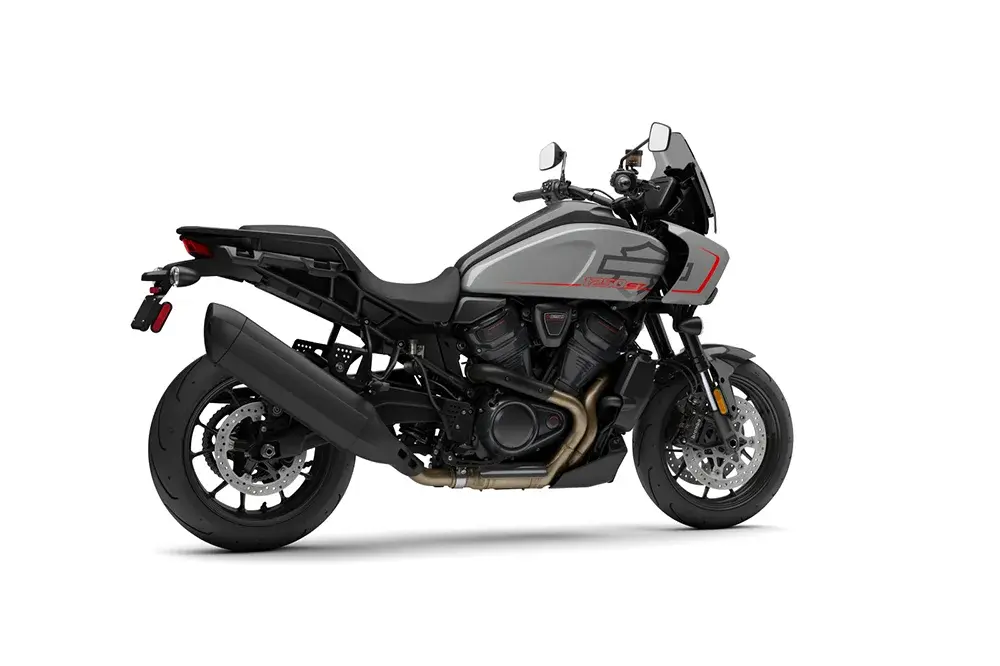

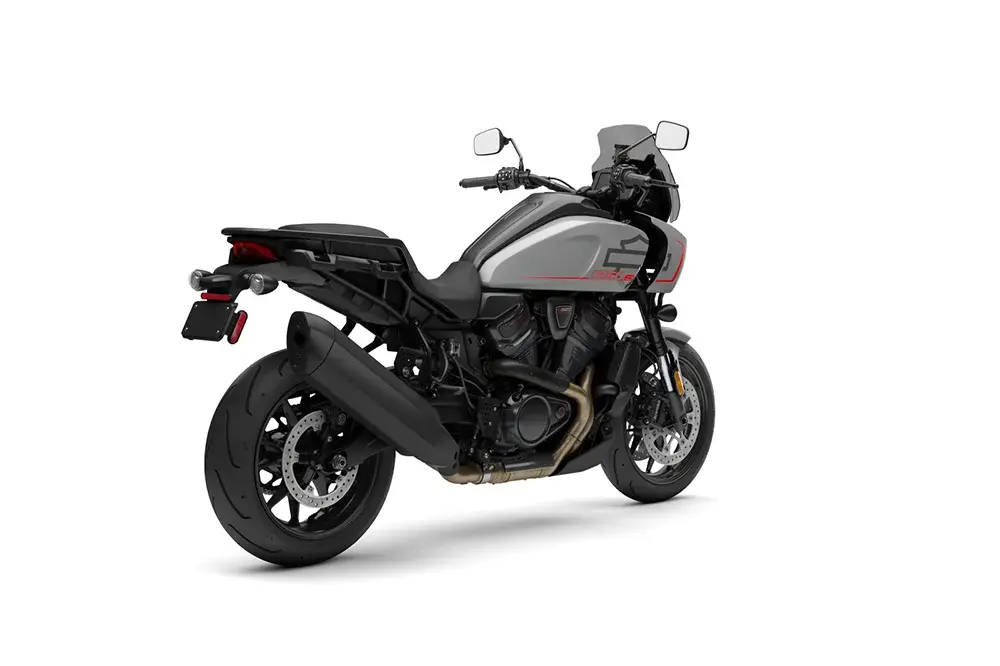

2025 Pan America^® 1250 ST

Building on the proven performance of the Pan America platform, the 2025 Pan America 1250 ST is reimagined for faster, more comfortable, and capable pavement performance, with lowered suspension, quick-shifting, 17-inch wheels, high-performance tires, and a slimmer, lighter profile.

Billiard Gray
Vivid Black
Brilliant Red
360

Disclaimer: Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

Key features

Revolution® Max 1250 Engine

The liquid-cooled Revolution Max 1250 has a broad powerband with 149 horsepower and 94 ft-lb of torque at its peak. Integrated into the chassis as a load-bearing element, this engine not only shaves off weight but also improves rigidity for a more responsive ride.

Specifications

Pricing

add remove
- Base MSRP

  $19,999
- Vivid Black

  $300
- Premium Solids

  $550
- California Emissions

  $200
- Freight

  $730
Dimensions

add remove
- Length

  88.2 in
- Ground clearance

  6.7 in
- Rake (steering head)

  25
- Trail

  3.7 in
- Wheelbase

  61.8 in
- Tires, front specifications

  120/70R19 60V
- Tires, rear specifications

  180/55ZR17 73W
- Fuel Capacity

  5.6 gal
- Oil capacity

  4.75 qt.
- Weight, as shipped

  507 lbs
- Weight, in running order

  542 lb
- Tire, type

  Michelin® Scorcher “Adventure”, Radial
Engine

add remove
- Engine

  Revolution® Max 1250
- Bore

  4.1 in
- Stroke

  2.8 in
- Displacement

  76.40 in³
- Compression ratio

  13.0:1
- Fuel system

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust

  2-into-1-into-1; catalyst in header
Performance

add remove
- Engine torque testing method

  J1349
- Engine torque

  91.5 ft-lb
- Engine torque (RPM)

  6750
- Horsepower

  149 HP / 111 kW @ 8750 rpm
- Lean angle, right (deg.)

  37
- Lean angle, left (deg.)

  37
- Fuel economy testing method

  Estimated City/Hwy
- Fuel economy

  46 mpg (5.1 l/100 km)
Powertrain

add remove
- Primary drive

  Gear, 49/89 ratio
- Gear ratios (overall) 1st

  13.11
- Gear ratios (overall) 2nd

  9.687
- Gear ratios (overall) 3rd

  7.509
- Gear ratios (overall) 4th

  6.057
- Gear ratios (overall) 5th

  5.08
- Gear Ratios (overall) 6th

  4.436
Chassis

add remove
- Front fork

  47mm inverted fork with electronically adjustable preload and manually adjustable compression and rebound. Aluminum fork triple clamps
- Rear shocks

  Linkage-mounted monoshock with automatic electronic preload control and manually adjustable compression & rebound damping
- Wheels, front type

  Aluminum cast, satin black
- Wheels, rear type

  Aluminum cast, satin black
- Brakes, type

  Front: dual rotor, floating, hub mounted; Rear: solid uniform expansion rotor
- Brakes, caliper type

  Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
- ABS

  Standard
Infotainment

add remove
- Type

  Color TFT w/ Touch
- Headset specifications (if equipped)

  Bluetooth
- Languages

  Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese
- Hands-free mobile phone — via Bluetooth

  Standard
- Voice Recognition Languages: Phone functions only

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation

  Phone dependent
- Text-to-Speech (TTS) languages

  Phone dependent
- Rider / passenger intercom

  Headset function only
- Vehicle information screen

  TPMS, Engine temp, Battery Voltage, Ambient Air Temp
- USB

  Charging and Instrument update, USB-C, 5V, 3A
- Bluetooth

  Phone/Media Supported
Color options

add remove
- Billiard Gray
- Vivid Black
- Brilliant Red
