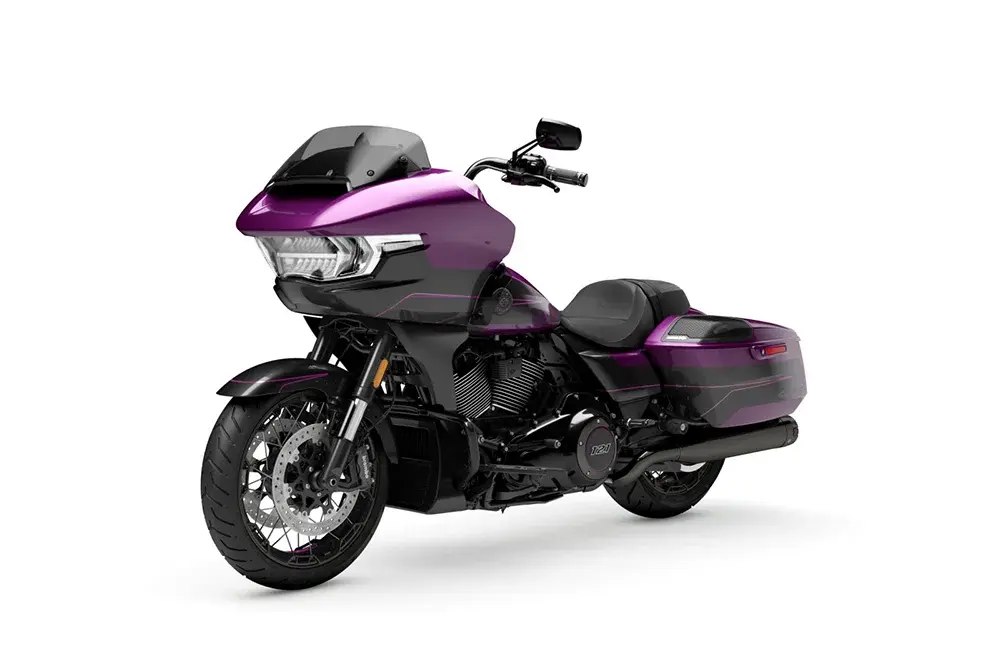

CVO™ Road Glide^®

Specifications

• Pricing

  add remove
  • Custom Color
    $5,000
  • Special Edition Custom Solid
    $45,999
  • California Emissions
    $200
  • Freight
    $875
• Dimensions

  add remove
  • Length
    94.9 in
  • Seat height, unladen
    28.3 in
  • Rake (steering head)
    26
  • Trail
    6.7 in
  • Wheelbase
    64 in
  • Tires, front specifications
    130/60B19 M/C 61H
  • Tires, rear specifications
    180/55B18 M/C 80H
  • Fuel Capacity
    6 gal
  • Oil capacity
    5 qt.
  • Weight, as shipped
    827 lbs
  • Weight, in running order
    866 lb
  • Luggage capacity – volume
    2.2 cu ft (0.062 m3)
  • Tire, type
    Dunlop® Harley-Davidson Series, bias blackwall front and rear
• Engine

  add remove
  • Engine
    Milwaukee-Eight® VVT 121
  • Bore
    4.1 in
  • Stroke
    4.6 in
  • Displacement
    120.64 in³
  • Compression ratio
    11.4:1
  • Fuel system
    Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust
    2-1-2 dual exhaust
• Performance

  add remove
  • Engine torque testing method
    J1349
  • Engine torque
    139.4 ft-lb
  • Engine torque (RPM)
    3000
  • Horsepower
    115 HP / 86 kW @ 4500 rpm
  • Lean angle, right (deg.)
    32
  • Lean angle, left (deg.)
    32
  • Fuel economy testing method
    Estimated City/Hwy
  • Fuel economy
    45 mpg (5.1 l/100 km)
• Powertrain

  add remove
  • Primary drive
    Chain, 34/46 ratio
  • Gear ratios (overall) 1st
    9.593
  • Gear ratios (overall) 2nd
    6.65
  • Gear ratios (overall) 3rd
    4.938
  • Gear ratios (overall) 4th
    4
  • Gear ratios (overall) 5th
    3.407
  • Gear Ratios (overall) 6th
    2.875
• Chassis

  add remove
  • Front fork
    47 mm Inverted 1x1 Front Forks
  • Rear shocks
    Dual adjustable emulsions suspension with remote preload adjustment on the left shock, and threaded preload on the right shock
  • Wheels, front type
    Combo Cast Laced
  • Wheels, rear type
    Combo Cast Laced
  • Brakes, type
    Dual floating rotors (front), fixed rotor (rear)
  • Brakes, caliper type
    32 mm, 4-piston fixed dual radially mounted front, and single axially mounted rear
• Infotainment

  add remove
  • Infotainment system
    Skyline™ OS
  • Type
    Full Color TFT
  • Watts per channel
    125
  • Speakers
    4
  • Speaker size
    Two 6.5in fairing speakers, and two 5x7in saddlebag speakers
  • Headset specifications (if equipped)
    Harley-Davidson Packtalk Edge wireless Bluetooth® headset
  • AM
    Standard
  • FM
    Standard
  • SD Card, Flash Drive and MP3 — via USB Connection
    Supported
  • Languages
    Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese (Brazil/Portugal), Romanian, Russian, Siamese (Thai), Slovak, Spanish (Mexico/Spain), Swedish, Tagalog, Turkish, Vietnamese
  • Hands-free mobile phone — via Bluetooth
    Standard
  • Voice recognition: phone functions only
    Phone dependent
  • Text-to-Speech (TTS) languages
    Phone dependent
  • Rider / passenger intercom
    Standard (Passenger Headset Sold Separately)
  • Vehicle information screen
    Standard
  • USB
    USB-C/MTP/iPod/iPhone, any device with proper adapters to the electric power outlet located in the inner fairing storage
  • Bluetooth
    Phone/Media Player, Headset
• Color options

  add remove
  • Poison Berry
  • Raven Fade
  • Blue Streak
